软件概览

HIPPO™

Hip Positioning Assistant


Problems

Femoroacetabular impingement (FAI) and hip dysplasia are the two primary causes of hip degeneration, leading to total hip arthroplasty (THA) as the final solution. Hip-preserving surgeries yield worse outcomes when the condition is detected late or significant degeneration has occurred. Additionally, the number of THAs performed in OECD countries is projected to increase substantially by 2050. Reading the large amount of radiographs associated with this poses several problems to orthopedists and radiologists:



Solutions

HIPPO™ presents a solution that enhances efficiency when reading pelvis radiographs. It significantly reduces daily workload for radiologists reading hip and pelvis x-rays, ensuring consistent and precise reporting. This helps eliminate subjectivity, especially for radiologists who read a high volume of x-rays daily. Furthermore, HIPPO's structured output streamlines the process and aids in identifying changes over time with a standardized methodology.

Increased throughput

Standardized Reading

Structured Outputs



Product description

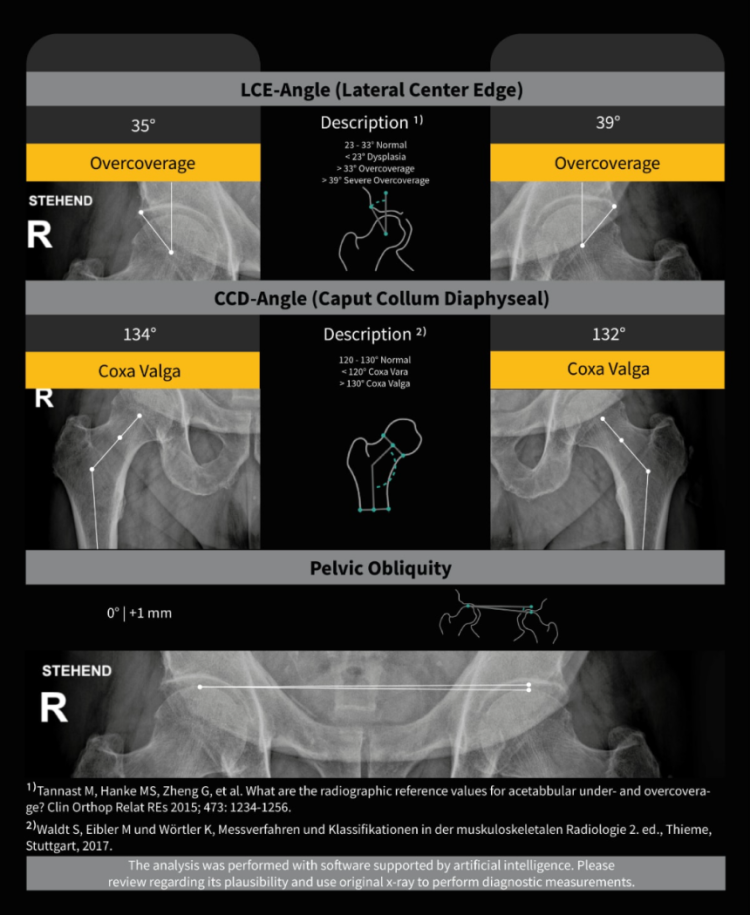

HIPPO™ supports the objective and standardized measurement of the most important hip angles based on digital x-rays. These include, for example, the CCD and LCE angles as well as numerous other relevant angles.


Findings

Lateral Center Edge (LCE) Angle

Caput-Collum-Diaphysis (CCD) Angle

Pelvic Obliquity

Tönnis Angle (Acetabular Inclination/Index)

Sharp Angle (Acetabular Angle)

Femoral Head Coverage / Extrusion Index


Intended use

IB Lab HIPPO™ is a radiological fully-automated image processing software device of either computed (CR) or directly digital (DX) images of the pelvis or hip. On either standing or supine, unilateral or bilateral AP radiographs, IB Lab HIPPO is intended to aid medical professionals in the measurement of the Caput-Collum Diaphysis (CCD) angle (also known as Neck-Shaft angle), and the Lateral Center-Edge Angle (LCE), Acetabular Index (aka Acetabular Inclination, Tönnis Angle), Acetabular Angle (aka Sharp’s Angle) and the Femoral Head Coverage/Extrusion Index. On bilateral standing AP hip radiographs, IB Lab HIPPO aids in the detection of the presence or absence of pelvic obliquity.

It should not be used in-lieu of full patient evaluation or solely relied upon to make or confirm a diagnosis.

The system is to be used by trained professionals including, but not limited to, radiologists and orthopedics.

The HIPPO™ Module is intended to be used on adult humans between 18-95 years presenting with hip pain, suspected congenital diseases, femoral-acetabular impingement, spinal malformation or osteoarthritis of the hip.




推荐配置

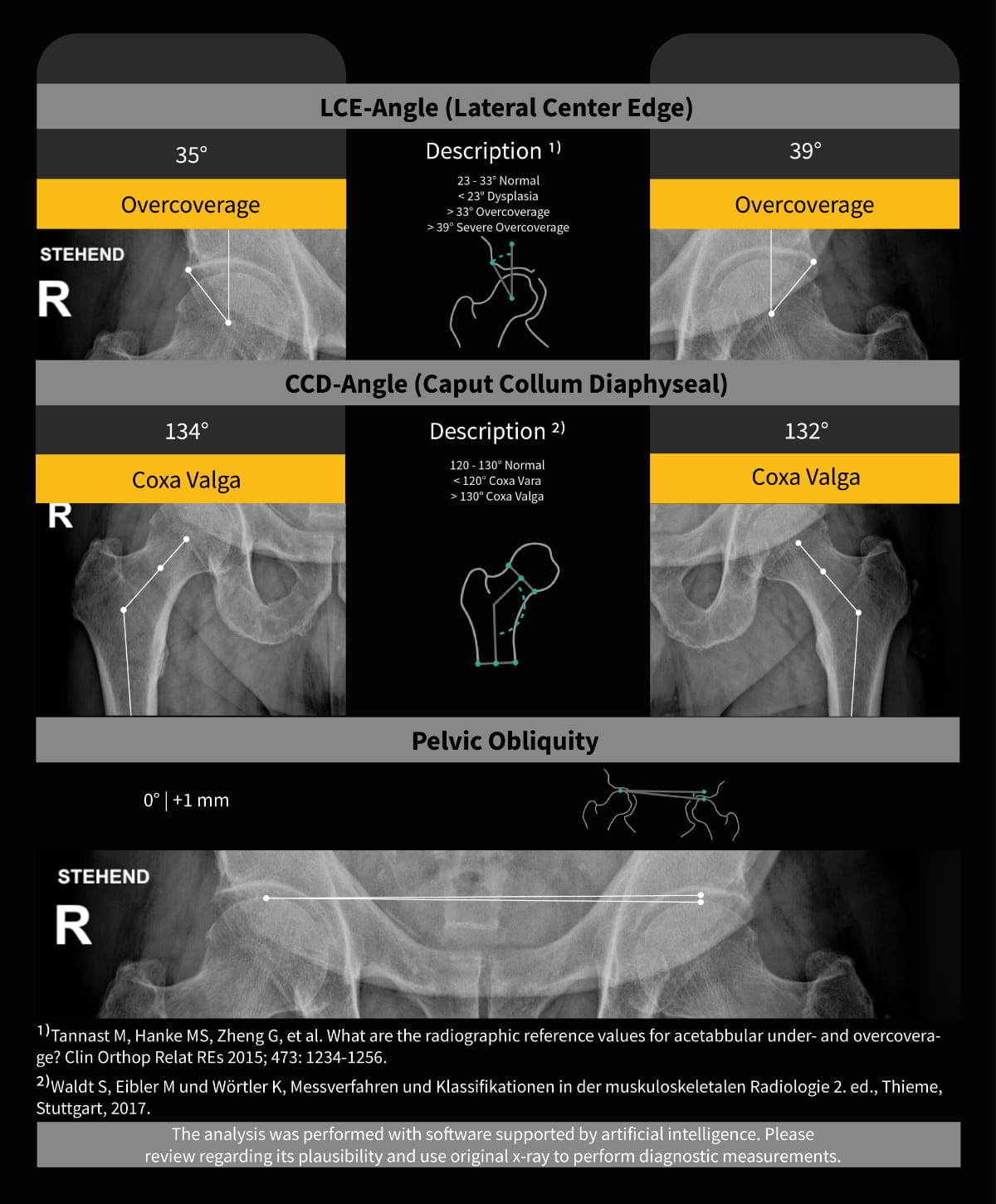

典型病例


软件教程


临床文献

References

IB Lab HIPPO clinical validation study

IB Lab US Market Survey 2020

Pabinger, C., Lothaller, H., Portner, N., & Geissler, A. (2018). Projections of hip arthroplasty in OECD countries up to 2050. Hip International, 28(5), 498-506.

Vaishya, R., Vijay, V., Birla, V. P., & Agarwal, A. K. (2016). Inter-observer variability and its correlation to experience in measurement of lower limb mechanical axis on long leg radiographs. Journal of clinical orthopaedics and trauma, 7(4), 260-264.

Khamis, S., & Carmeli, E. (2017). A new concept for measuring leg length discrepancy. Journal of Orthopaedics, 14(2), 276.

Paley D, Pfeil J. Principles of deformity correction around the knee. Orthopade. 2000 Jan;29(1):18-38.
