仅供临床科研使用
SagiPlan® HDR & Focal Therapy Planning 了解更多
销售价格： ￥ 面议
商品编号： AS-107-1544
软件语言： 英文
器械分类： II
生产厂家： Oncology Systems Limited
公司网址： https://osl.uk.com/
认证信息： FDA
系统要求： Windows
交付方式： 下载安装
  • 软件概览
  • 推荐配置
  • 典型病例
  • 软件教程
  • 临床文献
  • 用户评价
  • 产品彩页

软件概览

SagiPlan® HDR & Focal Therapy Planning

One Platform for All HDR Treatment Planning Needs


Overview

  • Comprehensive treatment planning software for all HDR applications including real-time prostate treatment.

  • Optimal planning for focal therapy with image fusion of live TRUS with any pre-registered data set.

  • Seamless integration with SagiNova® HDR remote afterloader



Ease of use

SagiPlan® provides an intuitive multilingual user interface. The customised layout and configuration of parameters for user preferences and treatment settings make planning fast and easy.


Multimodality imaging and registration

SagiPlan supports various image formats and modalities including CT, MR and radiographic film. With advanced image registration methods (manual, automatic, landmarks), data can be fused and displayed simultaneously for a reliable target definition and plan evaluation.

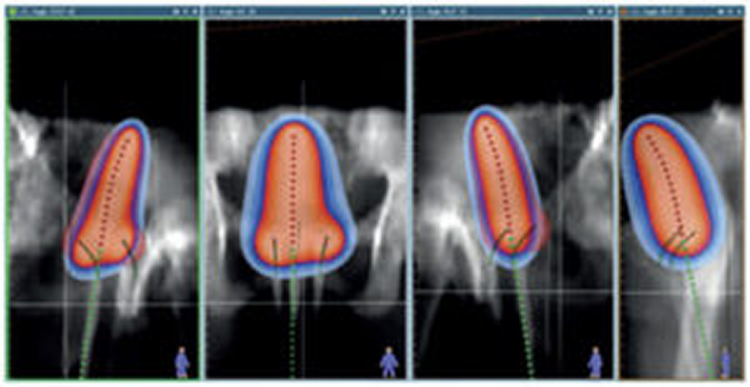

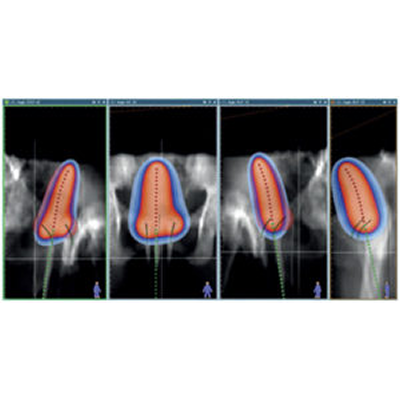

Applicator reconstruction

All applicators delivered by Eckert & Ziegler BEBIG are implemented in the SagiPlan® Applicator List with full 3D geometric data allowing for an easy, fast and accurate reconstruction. Flexible applicators are easily reconstructed with automatic image processing based on CT image data.

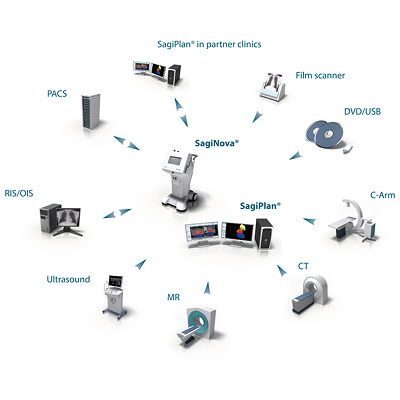

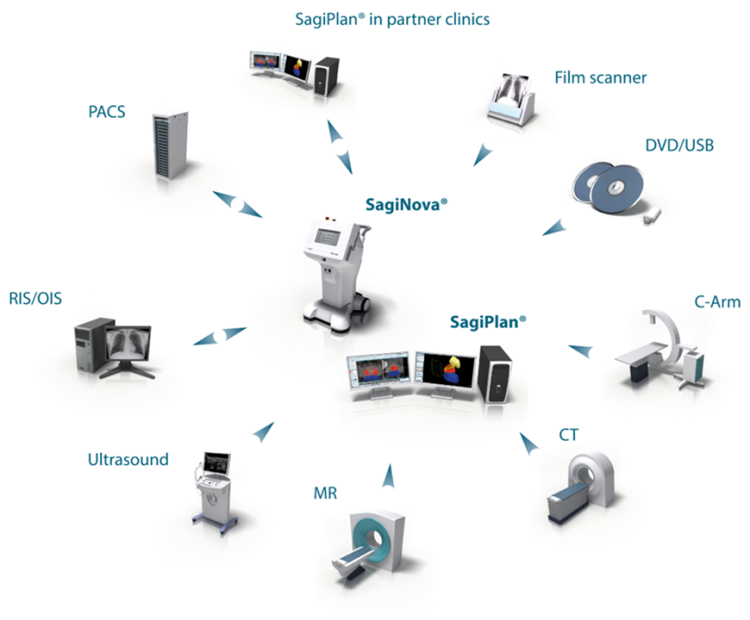

Full and flexible connectivity

SagiPlan provides full DICOM connectivity features with DICOM RT images, structures, plan and dose data. The DICOM Query and Retrieve together with the DICOM RT plan export to SagiNova® enables seamless workflow.

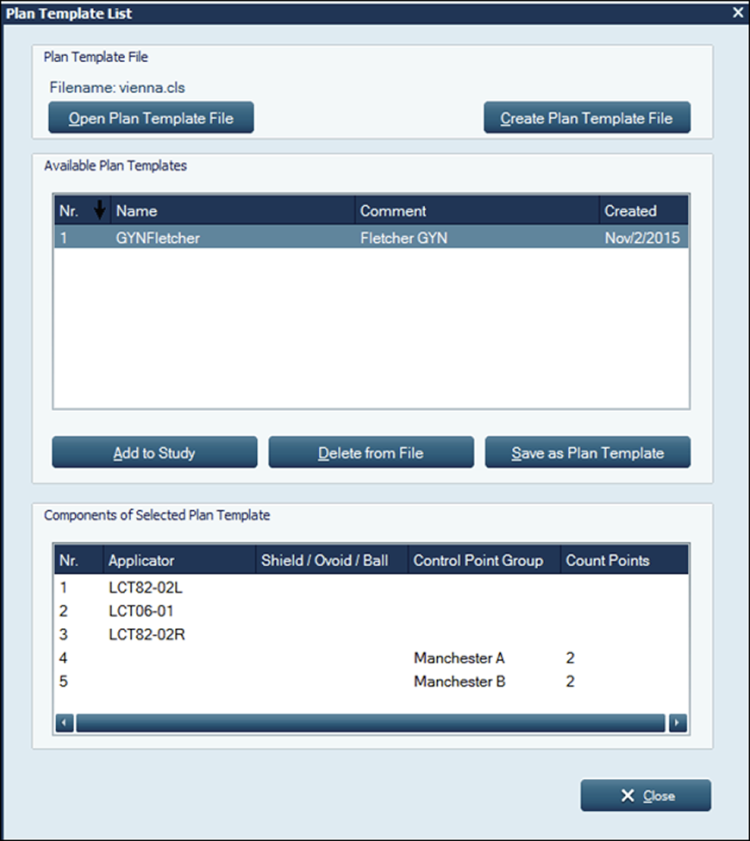

Plan template list

SagiPlan speeds up planning significantly with integrated Plan Templates. The Plan Template List helps the user to store their own set of applicators including their 3D spatial arrangement, control points for plan optimisation and dose monitoring as well as the entire source dwell position information and features a quick search function.


Extensive Dose calculation and optimisation features

SagiPlanis complant with AAPM TG-43 and HEBD-WG recommendations.lt enables dose calculations for both, cobalt-60 and indium-192 sources with indvidual applicatoraenuaton and shielding, Manua and automatc optmiaton otthe 0ose can be done wth a vanetvottoas such as mana sodse saind geometnc optimisation ano iersplamning for a reliable control of the target coverage, The fast simulated annealing algorithm optimises dwelltimes with respect to userdefineddose objectives.


Integrated Prostate Module

The Prostate Module is fully integrated into SagiPlan and enables interactive realtime planning of the prostate in the same user interface.

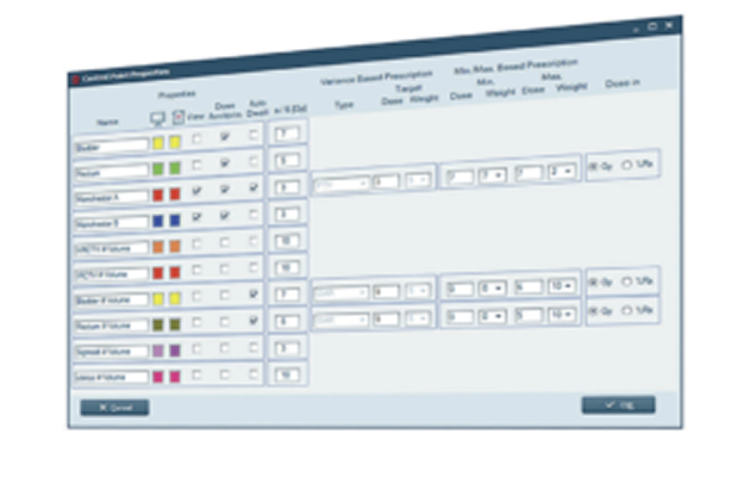

Jnique BED and EQD2 feature

SagiPlan alowsto calcwlare thebidlogical acive dose BED,thetota BED the eoualentdose in2.Gyfiacions E0D2 and the toal E0D2 foranysructural voume oruserselecreo conto ponts.hoividulaly oeined alsratos ao easy sesmantof HDRfecionatonin combinetionwihextemalredothecepy panms.The calcuatonis beasedonindrdalydefneda/8 ratios fordiferentcontolpointsforboth EBRT and forfectionated HDfbrachytherapy.


Inverse lrradiation Planning with DVH, BED, EOD2

By means of DVH parameters which can also be specifed directly in BED or EOD2, inverse planning can also be caried out in the case of combined radiotherapy.
